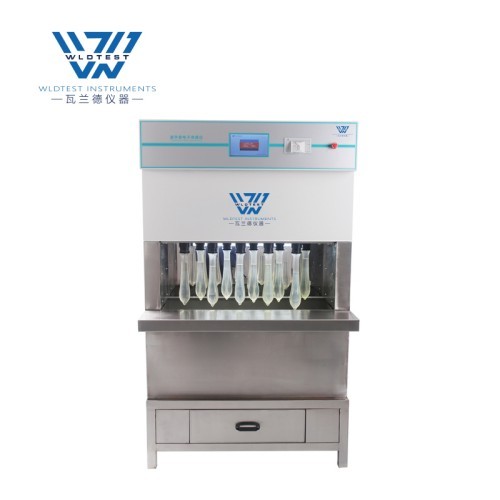

Condom Electronic Leak Detector
WB-003 Condom electric water leak tester is a fast and effective equipment. Its design meets the certification requirements of GB7544-2009 appendix l pinhole test, iso4074:2002 (technical requirements and test methods of natural rubber condoms), iso4074:2015, AFNOR (French Standardization Association), DIN (German Standardization Association), etc.
- WLDTEST
- China
- 10 working days
- 100 sets / month
- Information
- Video
- Download
WB-003 Condom electric water leak tester
WB-003 Condom electric water leak tester is a fast and effective equipment. Its design meets the certification requirements of GB7544-2009 appendix l pinhole test, iso4074:2002 (technical requirements and test methods of natural rubber condoms), iso4074:2015, AFNOR (French Standardization Association), DIN (German Standardization Association), etc.
Professional Technology
l Comfortable and safe operation, compact structure, easy maintenance, fast and reliable operation.
l With 10 independent automatic lifting test heads, the test data is automatically transmitted to the computer.
l The test range is wide, and it can meet all kinds of samples.
l According to iso4074:2002 conductivity leakage test method.
Testing Principle
The condom uses the method of electronic shielding to check the pinhole. The condom without pinhole is like an insulator. The current will not form a circuit and flow through the condom. On the contrary, the condom with pinhole will form a current circuit.
Testing Standard
The instrument conforms to many national and international standards: GB7544-2009, ISO4074:2002, ISO4074:2015, AFNOR, DIN.
Application Areas
Basic Application | It is suitable for the determination of all kinds of condoms by pinhole electroassay. |
Extended Application | It is suitable for the pinhole electrical detection of various rubber gloves and other products. |
Technical Parameter
Item Model | WB-003 |
Test workstation | Ten Station |
Test water temperature | 0~40℃ |
Injection volume | 300ml±10ml(Automatic water injection) |
DC voltage | (10±0.1)V |
Voltmeter accuracy | ±0.3mV |
Precision resistance | (10±0.5)kΩ |
Size | 1000 mm*450mm*1600mm |
Power | AC 220V 50Hz |
Net weight | 50 kg |
