Film Heat Shrinkable Tester
RSY-R2 Film Free Shrink Tester is professionally applicable to the determination of heat shrinking performance and dimensional stability of various films, heat shrinkable tubes, hard PVC films for tablets, and back-sheets in the fluid medium at different temperatures.
The Film Free Shrink Tester equipped with digital P.I.D. temperature control technology ensures the preset temperature to be reached rapidly without any fluctuation.The film shrinkage tester is heated through fluid medium, which could provide the stable test environment.
The film free shrink tester has the automatic timer function to efficiently guarantee the accuracy of test data.The instrument is controlled by micro-computer with LCD, PVC operation panel, and menu interface.Standard clamp wire mesh support could make the test done smoothly.
- WLDTest
- China
- 10 working days
- 100sets/month
- Information
- Video
- Download

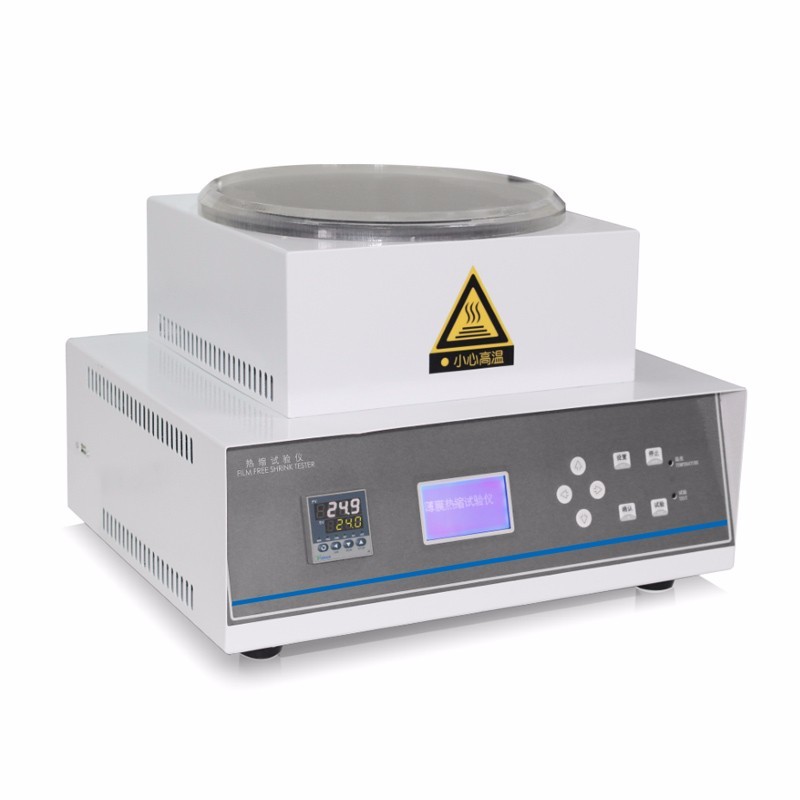

RSY-R2 Film Free Shrink Tester
RSY-R2 Film Free Shrink Tester is professionally applicable to the determination of heat shrinking performance and dimensional stability of various films, heatshrinkable tubes, hard PVC films for tablets, and back-sheets in the fluid medium at different temperatures.
Features
Digital PID temperature control technology ensures the preset temperature to be reached rapidly without any fluction.
The instrument is heated through fluid medium, which could provide the stable test environment
Automatic timer function to efficiently guarantee the accuracy of test data
The instrument is controlled by micro-computer with LCD, PVC operation panel, and menu interface
Standard clamp wire mesh support could make the test done smoothly
Standards
This instrument conforms to the following standards: GB/T 13519, ASTM D2732
Rich Application
Basic Application | Film | It is suitable for testing static and dynamic friction coefficients of plastic film and sheet |
Paper | It is applicable to the test of dynamic and static friction coefficient of paper and paperboard | |
Textiles, non-woven fabrics, woven bags | It is suitable for testing static friction coefficient and dynamic friction coefficient of textiles, non-woven fabrics and woven bags | |
rubber | It is suitable for testing static and dynamic friction coefficients of rubber | |
Aluminum foil, aluminum foil composite film, metal products | Suitable for static and dynamic friction coefficient test of aluminum foil, aluminum foil composite film and metal products | |
Printed matter | Test of static and dynamic friction coefficients for printed matter |
Technical Index
Model Item | MXD-02 Coefficient of Friction Tester |
Load range | 0 ～ 5 N |
Accuracy | 0.5 Grade |
Stroke | 70 mm, 150 mm |
Mass of sled | 200g, 500g （1000g Optional） |
Note: other quality sliders can be customized | |
Test speed | 100mm/min, 150mm/min |
Note: other speeds are adjustable | |
Environmental requirements | Temperature：10℃～40℃ |
Humidity：20%RH～70%RH | |
Power | AC 220V 50Hz |
Size | 470 mm (L) × 310 mm (W) × 200 mm(H) |
Product Configuration
Standard configuration | Instrument, micro printer, 200g slider, 500g slider |
Optional items | 1000g slider, non-standard slider, communication cable, professional software |
