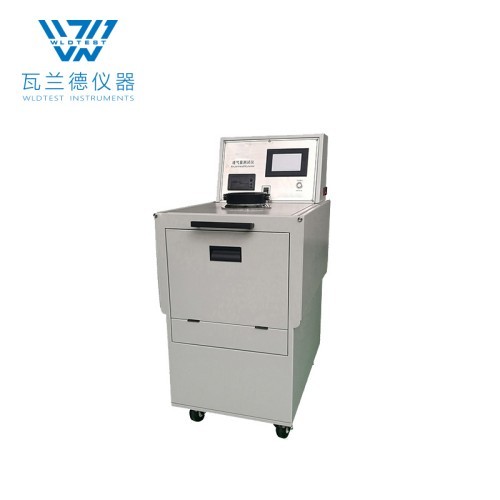

Industrial filter cloth testing device the air permeability of various filter materials testing equipment
Used to test the air permeability of various materials such as fabrics, nonwoven fabrics, industrial filter fabrics, paper, and various filter materials.
- WLD
- CHINA
- 1-7DAYS
- 100
- Information
Industrial filter cloth testing device the air permeability of various filter materials testing equipment
Used to test the air permeability of various materials such as fabrics, nonwoven fabrics, industrial filter fabrics, paper, and various filter materials.
1. The test speed is fast, and the routine test lasts about 10-15 seconds.
2. Industrial color touch screen operation, Chinese and English menu display.
3. Different national standard parameters and units can be arbitrarily set, and the test results can be directly printed out without conversion.
4. Meet international standards, and achieve advanced levels of stability, repeatability, and reliability.
5. Adopt international brand imported pressure sensors to ensure the accuracy of test data.
6. Adopt lockable silent universal pulley for easy removal.
7. A retractable workbench is used, which is convenient for testing and does not occupy space.
Specification
| Pressure range | 0-300pa/0-4000pa |
| Test range | 0.2-12826mm/s |
| Display resolution | 0.1 |
| Test accuracy | ≤± 2% |
| Sample thickness | ≤ 12mm |
| Instrument calibration | standard orifice plate calibration |
| Power supply | AC220V ± 10% |
| Power | 1100W |
| Overall dimension | 450x710x1000mm |
| Net weight | 115kg |
