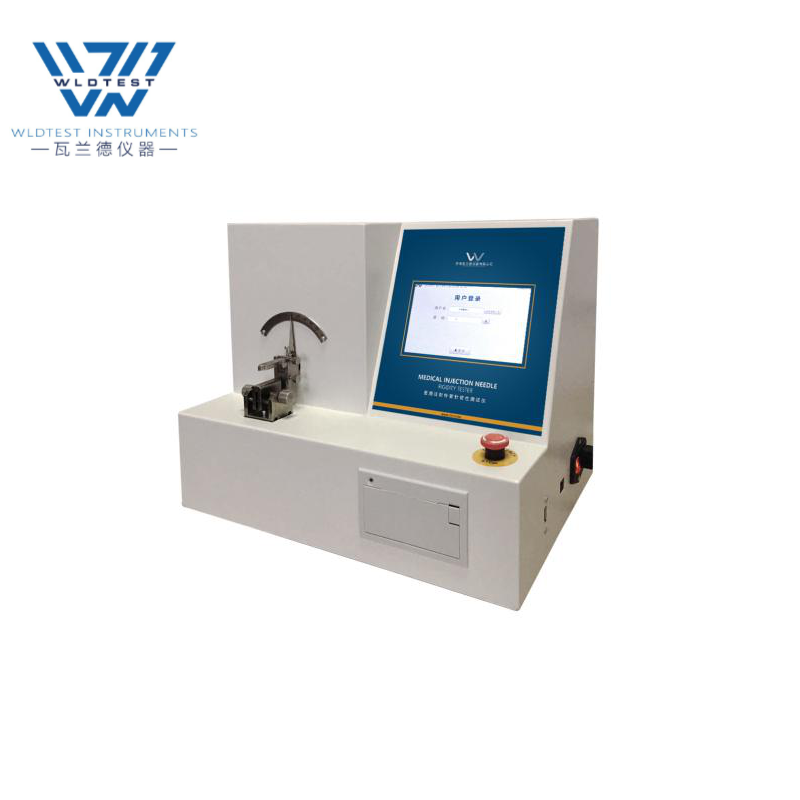

Medical Needle Resistance Breakage Tester
WY-006 Medical Needle (Tubing) Resistance Breakage Tester is suitable for testing the toughness of injection needle. It is one of the important means to identify medical injection needle.
- WLDTEST
- China
- 20 working days
- 100 sets / month
- Information
- Video
- Download

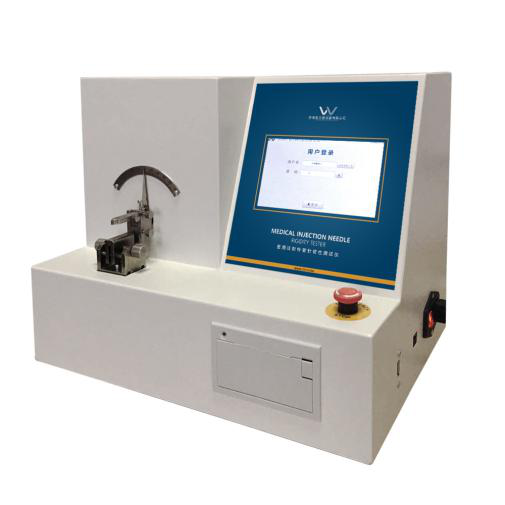

WY-006 Medical Needle (Tubing) Resistance Breakage Tester
WY-006 Medical Needle (Tubing) Resistance Breakage Tester is suitable for testing the toughness of injection needle. It is one of the important means to identify medical injection needle.
Professional technology
l The tester adopts 7-inch professional color LCD screen.
l Chinese and English menu display: nominal specification, pipe wall, span, set load, maximum deflection, print setting, test, up, down, time, calibration.
l The program is set by PLC, and the test space of automatic test station can be carried out at the same time.
Test principle
Fix one end of the needle tube, and apply a force value from the fixed point to the needle tube with the specified span. First, let the needle rest at a certain point, then bend it at a specified angle in the opposite direction, and then bend repeatedly until the specified number of times.
Test standard
The instrument meets GB18457-2015.
Test application
Basic application | It is suitable for toughness measurement of various injection needles. |
Technical index
Item | Parameter |
Tube wall | Normal wall, thin wall and ultra thin wall are optional |
Nominal specification | 0.5~4.5mm |
Test frequency | 0.5Hz |
Bending angle | 15º、20º、25º Three angles |
Bending distance | 6~95mm |
Accuracy | ±0.1mm |
Implementation times | Two way force application 20 times |
Size | 400 mm (L) × 270 mm (W) × 300 mm(H) |
Net weight | 10kg |
Product configuration
Standard configuration | Host, fixture, weight, printing paper, instruction manual |
