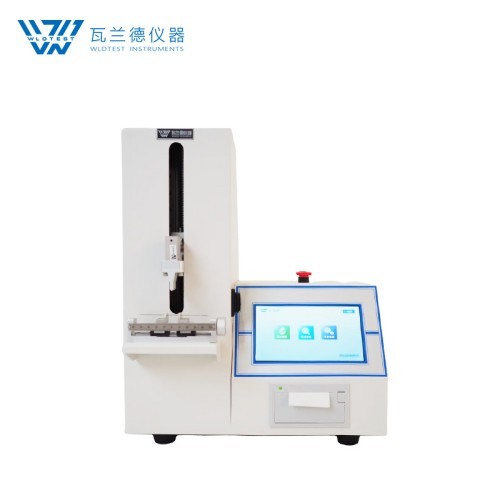

Medical Needle Stiffness Tester
WY-002 Medical Needle (Tubing) Stiffness Tester is suitable for testing the rigidity of injection needle and is one of the important means to identify medical injection needle.
- WLDTEST
- China
- 20 working days
- 100 sets / month
- Information
- Video
- Download
WY-002 Medical Needle (Tubing) Stiffness Tester
WY-002 Medical Needle (Tubing) Stiffness Tester is suitable for testing the rigidity of injection needle and is one of the important means to identify medical injection needle.
Professional technology
l The tester adopts 7-inch professional color LCD screen.
l Chinese and English menu display: nominal specification, pipe wall, span, set load, maximum deflection, print setting, test, up, down, time, calibration.
l The program is set by the intelligent controller, and the test data is printed on board.
Test principle
Apply the specified force to the center of the specified span of the needle supported at both ends, and measure the deflection value and load of the needle tube.
Test standard
The instrument meets many national and international standards : ISO 9626-2016, GB18457-2015, GB15811-2016.
Test application
Basic application | It is suitable for measuring the rigidity of various injection needle tubes (needles). |
Technical index
Item | Parameter |
Tube wall | Normal wall, thin wall, ultra thin wall and extremely thin wall are optional |
Nominal specification | 0.2~3.4mm |
Set load | 0.6~60N |
Accuracy | ±0.1N |
Loading speed | When loaded to the set value, the speed is 1mm/min |
Span | 3.5~50mm |
Accuracy | ±0.1mm |
Deflection test | 0~5mm, Accuracy：±0.01mm |
Size | 400 mm (L) × 270 mm (W) × 360 mm(H) |
Net weight | 20kg |
Product configuration
Standard configuration | Host, fixture, weight, printing paper, instruction manual |
