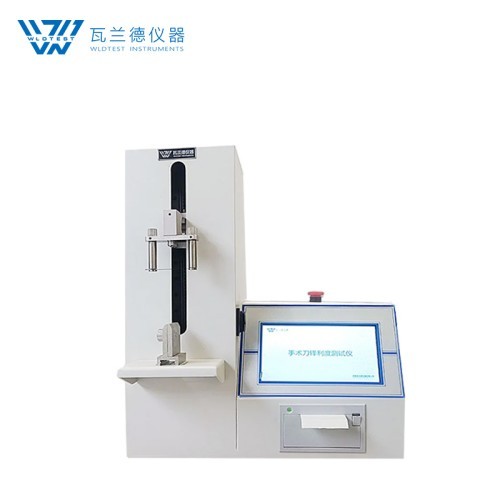

Surgical Blade Sharpness Tester

Surgical Blade Sharpness Tester is a special testing equipment for testing the sharpness of surgical blade. It is designed and manufactured according to the relevant provisions of yy0174-2005 standard. It can display the force value and the maximum cutting force required by the surgical blade to cut the standard suture in real time.

Professional technology

l The instrument is composed of PLC, PLC, force measuring mechanism, transmission mechanism, printer, etc.

l The tester adopts 7-inch professional color LCD screen with Chinese and English menu display.

l Real time display of the force value and maximum cutting force required for cutting standard suture with surgical blade.

l It has the advantages of convenient operation, clear display, high precision and good reliability.

Test principle

Fix the sample on the fixture, fix one end of the suture on a wire winding clamp, add a 100g weight to the other end of the suture to make the suture horizontal and fixed on the other clamp; the sample moves vertically downward at the speed of no more than 10mm / s to cut the middle part of the suture line; when the suture is cut, the display result of the instrument is the force value of the blade cutting the suture.

Test standard

The instrument meets YY0174-2005 standard.

Test application

Technical index

Product configuration
