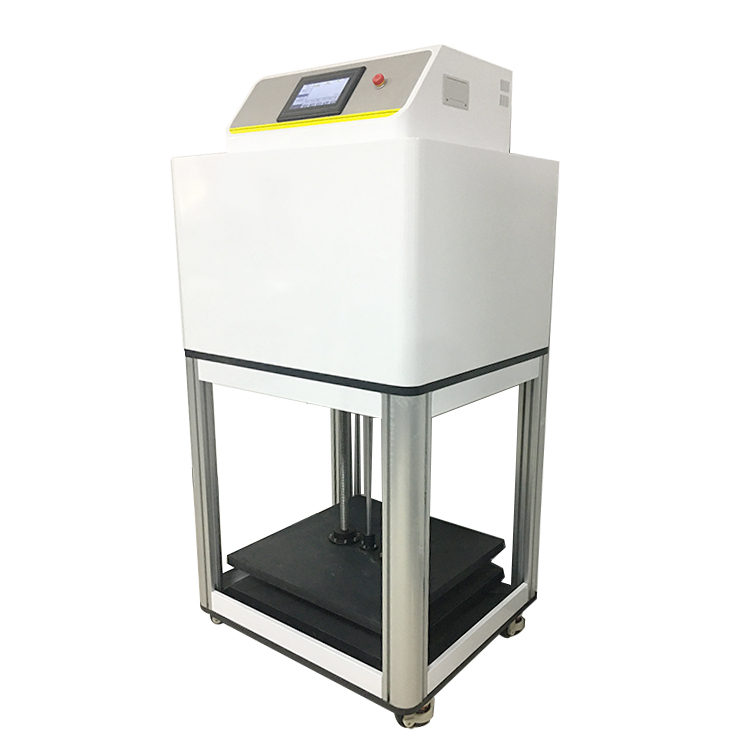

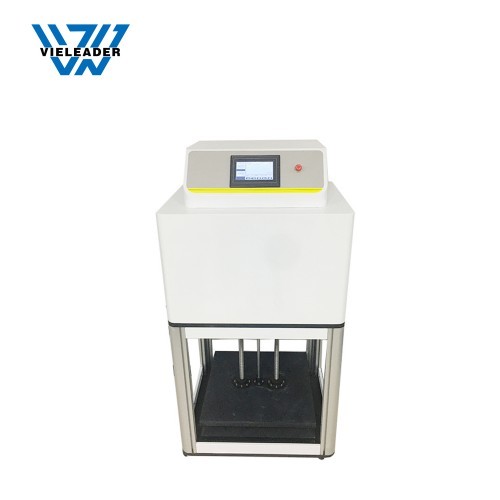

Carton compression machine
The carton compression tester is a professional testing machine for testing the compressive performance of cartons, suitable for pressure resistance, deformation, and stacking tests of corrugated cardboard boxes, honeycomb cardboard boxes, and other packaging components. In addition, the compressive tests of plastic barrels (edible oil, mineral water), paper barrels, paper boxes, paper cans, container barrels (IBC barrels), and other containers are also considered.
- WLD
- CHINA
- 1-7DAYS
- 100
- Information
Carton compression machine
1. Small integrated design, supporting a wide range of power supplies, meeting various testing requirements.
2. Provide multiple test methods such as crushing force test, stacking test A and stacking test B.
3. Dynamic display of test pressure and specimen deformation, convenient for viewing test data at any time.
4. High quality motor with ball screw, test speed can be freely set.
5. Intelligent design such as overload protection, stroke protection, and automatic fault alarm.
6. Embedded computer system platform, combining instruments and software, without the need for external computer data security design, improves the reliability of data management and test operations.
7. Windows style window interface, keyboard and mouse control, easy to learn and use.
8. Equipped with serial port and network port for convenient data transmission.
| Range | 9000N |
| Force value accuracy | ±0.1%FS |
| Force resolution | 1 N |
| Deformation resolution | 0.01 mm |
| Test speed | 0~200mm/min |
| Speed accuracy | ±2% |
| Size | 800*700*1600mm |
| Weight | 329 kg |
