Coefficient Of Friction Tester
The coefficient of friction tester (COF tester) MXD-02 is professionaly designed for the static and kinetic coefficient of friction test of plastic film, paper, sheet, coating, fabric, leather, non-woven fabric, metal, rubber, wood, etc.
With the material smoothness testing, users can control and adjust material quality technical indexes to meet application demands in the process of production, transportation and marketing, therefore the coeffiction of friction tester (COF tester) is a must for this quality control.
The Coefficient of friction tester (COF tester) MXD-02 conforms to the standards of ISO8295, ASTM D1894, TAPPI T816 etc. The COF tester MXD-02 is a good assistant of a quality control lab.
- WLDTEST
- China
- 10 working days
- 100 sets / month
- Information
- Video
- Download

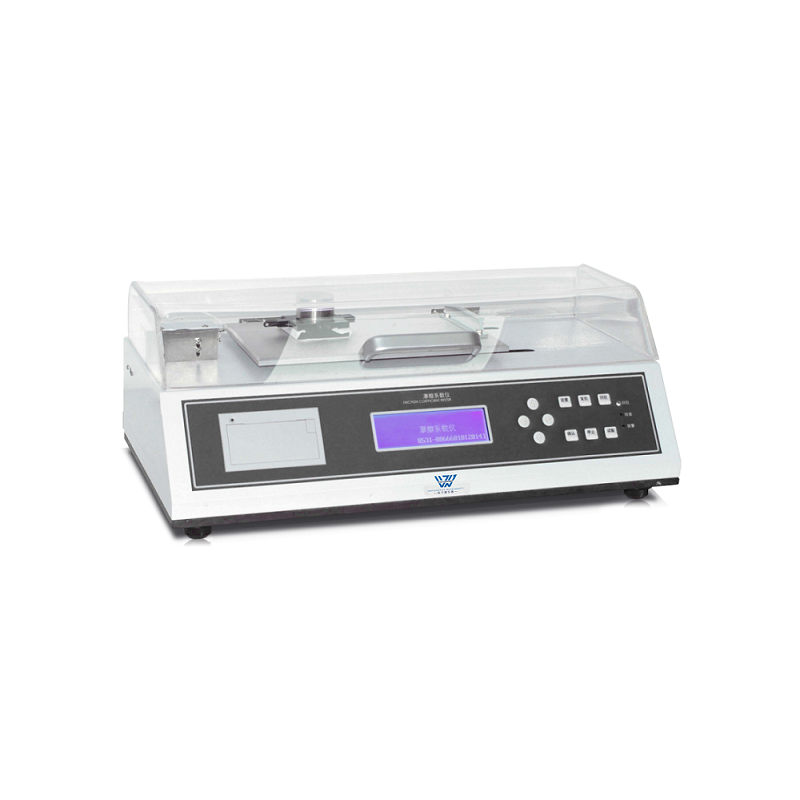

Coefficient of Friction Tester MXD-02
The coefficient of friction tester (COF tester) MXD-02 is professionaly designed for the static and kinetic coefficient of friction test of plastic film, paper, sheet, coating, fabric, leather, non-woven fabric, metal, rubber, wood, etc.
With the material smoothness testing, users can control and adjust material quality technical indexes to meet application demands in the process of production, transportation and marketing, therefore the coeffiction of friction tester (COF tester) is a must for this quality control.
The Coefficient of friction tester (COF tester) MXD-02 conforms to the standards of ISO8295, ASTM D1894, TAPPI T816 etc. The COF tester MXD-02 is a good assistant of a quality control lab.
Professional Technology
The static and kinetic COF value can be obtained with one test.
The test speed is selectable as required. Special test speed could be customized.
The tester conforms to multiple standards of GB、ISO、ASTM, the user could select the testing methods as required .
The device is controlled by micro-computer with LCD display, PVC operation panel and menu interface.
Top quality parts and components assured the reliability of the performance.
The operating software supports statistical analysis of single specimen, group specimens, superposition analysis of test curves and historical data comparison functions
The micro-printer and USB port makes the data transmission and PC connection convenient.
Application
Basic application | Plastic Films and Sheets | Coefficient of static and dynamic friction tests of plastic films and sheets |
Paper and Paperboard | Coefficient of static and dynamic friction tests of paper and paperboard | |
Textiles, Non-woven Fabrics and Woven Bags | Coefficient of static and dynamic friction tests of textiles, non-woven fabrics and woven bags | |
Rubber | Coefficient of static and dynamic friction tests of rubber products | |
Aluminum Foils, Aluminum Foil Composite Films, and Metal Products | Coefficient of static and dynamic friction tests of aluminum foils, aluminum foil composite films and other metal products | |
Printing Matters | Coefficient of static and dynamic friction tests of printing matters |
Standards
ISO 8295、GB 10006、ASTM D1894、TAPPI T816
Technical Specification
Model Item | MXD-02 Coefficient of Friction Tester |
Capacity Range | 0 ～ 5 N |
Accuracy | 0.5 FS |
Stroke | 70 mm、150 mm |
Mass of sled | 200 g ( standard) |
Note: customization is available for special demand. | |
Test Speed | 100 mm/min、150 mm/min |
Note：speed could be adjusted | |
Environment Condition | Temperature：23±2℃ |
Humidity：20%RH~70%RH | |
Power supply | AC 220V 50Hz |
Dimension | 630 mm (L) × 360 mm (W) × 230 mm (H) |
Net weight | 33 kg |
Configurations
Standard Configurations | Instrument、Micro-printer、200g sled、500g sled | |
Optional Parts | 1000g sled、Professional Software、Communication Cable | |
