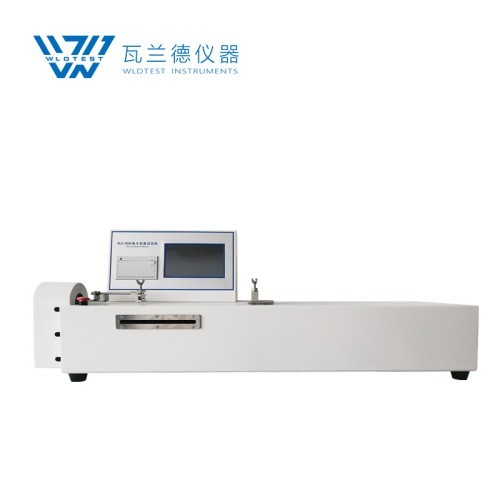

Electronic Stripping tester for stripping, shearing and breaking of adhesives
Electronic Stripping tester has abundant applications, with more than 100 different sample fixtures for users to choose, which can meet the test requirements of more than 1000 kinds of materials; according to the different materials of users, it also provides customized
services to meet the test needs of different users.
- WLD
- CHINA
- 1-7DAYS
- 100
- Information
Application
Electronic Stripping tester has abundant applications, with more than 100 different sample fixtures for users to choose, which can meet the test requirements of more than 1000 kinds of materials; according to the different materials of users, it also provides customized services to meet the test needs of different users.
Professional technology
1. Microcomputer control, LCD screen display, real-time test curve drawing synchronously, professional measurement and control software support.
2. The screw drive system greatly improves the accuracy of transmission displacement and
realizes stepless speed regulation function.
3. Intelligent operation has three test functions: maximum value, average value and real-time value.
4. Type in the test parameters, and the test results can be output by group statistical analysis.
5. The system has overload protection, emergency power failure protection, and zero fault of manual operation.
6. It is equipped with a miniature mute printer, USB interface, computer connection, and can print out test data.
7. N、KN/m、lbf、g Multi-unit selection, automatic printing unit data after the end of the test.
8. Compatible with international standards such as ISO, JIS, ASTM, DIN, etc.
| Range | 0~200 N |
| Accuracy class | 1 |
| Resolution | 0.01 N |
| Test speed | 50/100/150/200/250/300/500 mm/min |
| Specimen width | ≤30 mm |
| Test stroke | 500mm |
| Power | 220 V/50Hz |
| Size | 1000*370 *400 mm |
| Net weight | 27 kg |
