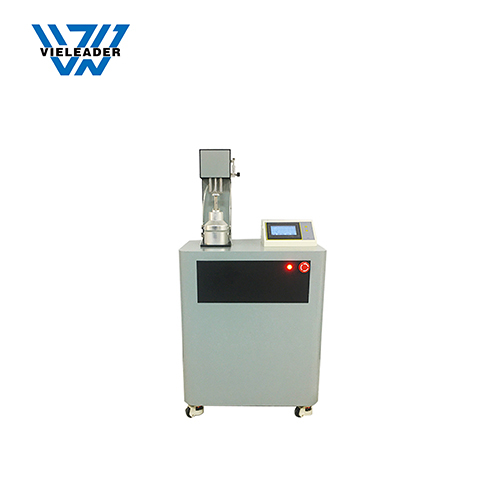

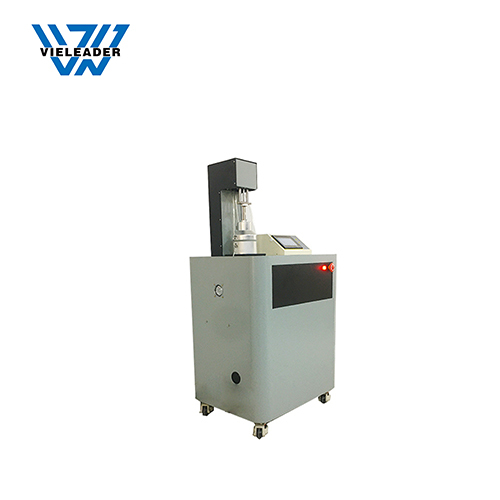

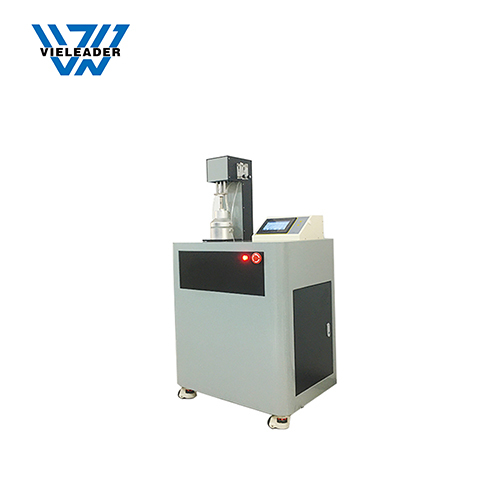

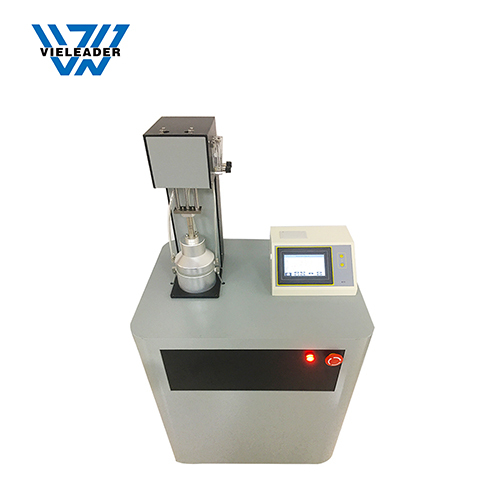

Filter efficiency testing device of mask
The particulate filter performance tester is applicable to test the filter efficiency of the 0-99.999% level mask, and test the mask according to the standard. The design of the whole tester is compact and portable, and the test air volume corresponds to the required flow on the fixture during the operation test. The aerosol produced by the aerosol generator is adjusted, and then neutralized by static electricity, and then mixed with the filtered test air evenly, and then enters the test area through the filter material. In order to measure the efficiency, a separate stream of air is drawn upstream and downstream of the mask. Use a photometer to measure the concentration of particles in the sampling air stream, and then obtain the measured efficiency through the ratio of upstream and downstream. In addition, the resistance of filter material during the test can be measured and the flow can be adjusted and controlled.
- WLD
- CHINA
- 1-7DAYS
- 100
- Information
Filter efficiency testing device of mask
The particulate filter performance tester is applicable to test the filter efficiency of the 0-99.999% level mask, and test the mask according to the standard. The design of the whole tester is compact and portable, and the test air volume corresponds to the required flow on the fixture during the operation test. The aerosol produced by the aerosol generator is adjusted, and then neutralized by static electricity, and then mixed with the filtered test air evenly, and then enters the test area through the filter material. In order to measure the efficiency, a separate stream of air is drawn upstream and downstream of the mask. Use a photometer to measure the concentration of particles in the sampling air stream, and then obtain the measured efficiency through the ratio of upstream and downstream. In addition, the resistance of filter material during the test can be measured and the flow can be adjusted and controlled.
1. High-precision differential pressure sensor for accurate measurement of sample resistance.
2. High-precision laser particle counter can detect the concentration of ions in the upstream and downstream of the sample to ensure the authenticity and accuracy of the upstream and downstream sampling of the sample.
3. The aerosol generation system adopts customized nozzle, which can meet the requirements of oil and salt aerosol generation at the same time, and can produce multi-dispersed particle size release, and the fog concentration can be adjusted quickly and stably.
4. TFT true color touch screen control, simple and intuitive operation, support remote maintenance.
5. The test results are automatically calculated and displayed by the system, and printed out.
| Measure range | 15-100L/Min |
| Specification | 100 cm² |
| Resistance test | Range 0-1000Pa, accuracy 0.5%, manual reset function |
| Efficiency range | 0-99.999% |
| Fogging dust source | PSL,DEHS,DOP |
| Size | 800*650*1600mm |
| Weight | 100kg |
