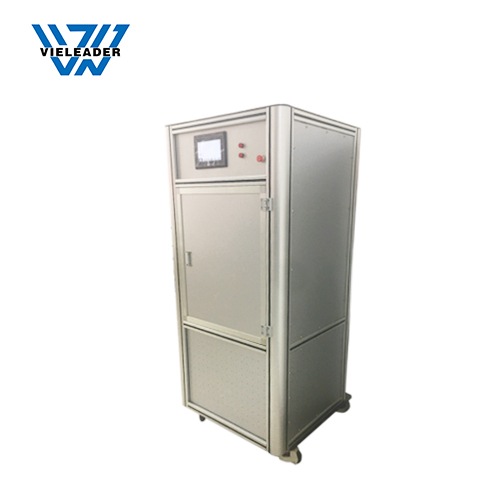

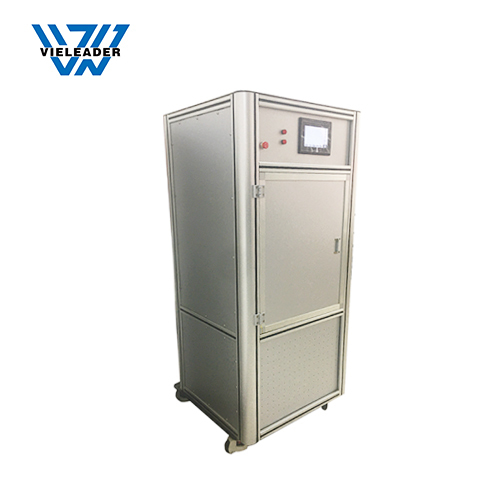

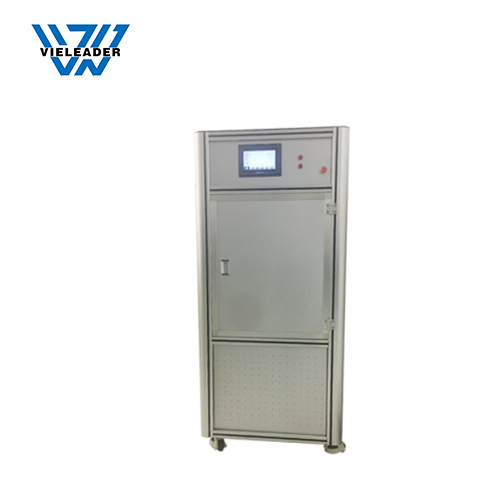

Line thermal expansion coefficient of tester
The instrument is suitable for measuring the expansion and contraction of materials such as glass in the heating process. The ambient temperature control and laser displacement sensor mainly generate the basic acquisition information required for the system experiment, and then the software system collects and analyzes the above sensor signals, and dynamically calculates the required experimental results for the analysis of the experimenter.
Specification
High temperature | 0~400℃ |
Accuracy | ±1℃ |
Rate | 10℃/Min |
Range | 0-5mm,±2.5mm |
Sensor resolution | 0.0001mm |
Specimen size | 150-200mm |
Size | 750*700*1650mm |
Voltage | AC 220V 50Hz 3KW |
Weight | 231Kg |
