Medical injection needle penetrate force performance testing equipment
The Series of Testing Conical Fittings with a 6% (Luer) Taper is designed and manufactured in accordance with GB/T 1962 and ISO80369 standards. It is mainly used to test the performance indexes of syringes, injection needles, infusion sets, transfusion needles, catheters, anesthesia filters and other medical instruments (Luer) conical joints (locked and non-locked), such as leakage, air leakage, separation force, opening torque, easy assembly, resistance to sliding wire, stress cracking and so on.
- WLD
- CHINA
- 1-7DAYS
- 100
- Information
Application

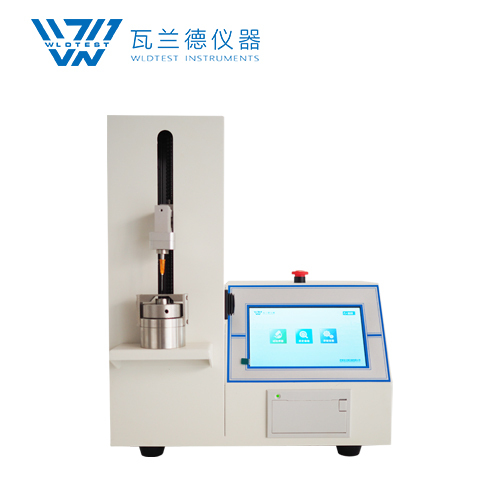

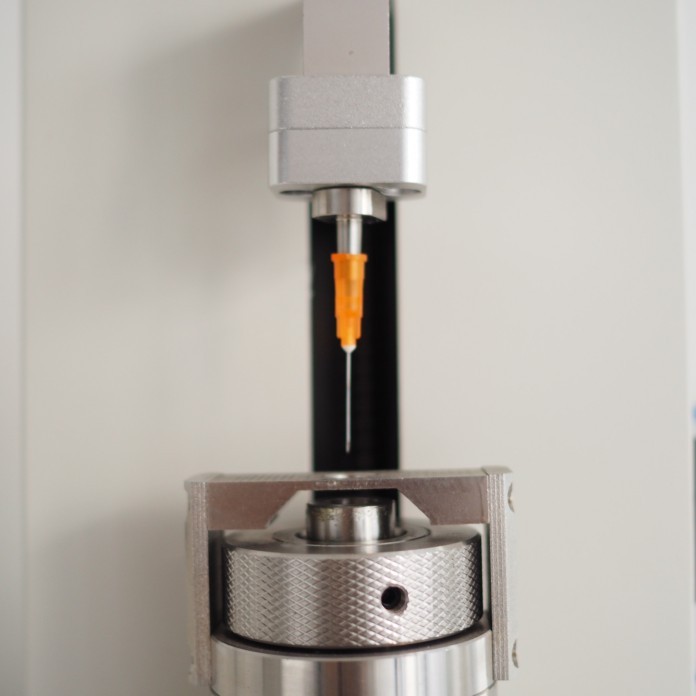

WY-001 Medical Needle puncture force tester is suitable for testing the penetration performance of injection needle. It is one of the important means to identify medical injection needle.
Professional technology
1. The tester adopts 7-inch professional color LCD screen.
2. Chinese and English menu display: nominal specification, pipe wall, test, test times, up, down, time, calibration.
3. It displays penetration force and five peak forces in real time. Also can display maximum penetration force. And the built-in printer can print the test report.
| Tube wall | Normal wall/thin wall/ultra thin wall |
| Nominal specification | 0.18~3.4mm |
| Test range | 0~10N |
| Test accuracy | ±0.5%FS |
| Test speed | (100±5)mm/min |
| Simulated skin | Polyurethane membrane material |
| Print type | can be printed |
| Size | 400 *270*360 mm |
| Net weight | 11kg |
