Medical Syringe Sliding Tester
WY-005 Medical Syringe Sliding Tester is suitable for testing the sliding performance of syringe. It is one of the important means to identify medical syringes.
- WLDTEST
- China
- 20 working days
- 100 sets / month
- Information
- Video
- Download

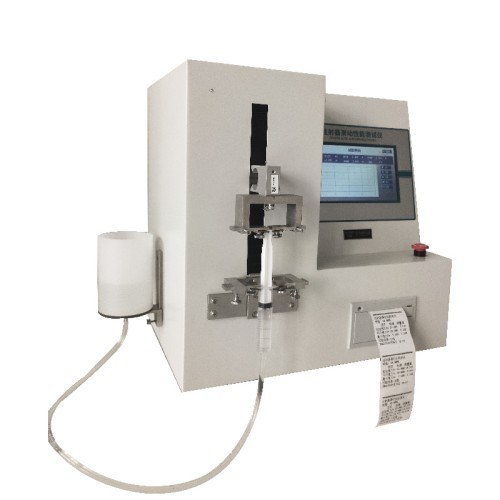

WY-005 Medical Syringe Sliding Tester
WY-005 Medical Syringe Sliding Tester is suitable for testing the sliding performance of syringe. It is one of the important means to identify medical syringes.
Professional technology
l The tester adopts 7-inch professional color LCD screen.
l Chinese and English menu display: real-time display of the starting force, average force, maximum push-back force, minimum push-back force, and core rod movement and force records.
l The intelligent controller selects the nominal capacity of the syringe, automatically judges the test results, and prints the test results by the airborne printer.
Test principle
Fix the syringe body, apply a force to one end of the core rod, and test the pull force and thrust force between the core rod and the syringe body at a certain speed.
Test standard
The instrument meets many national and international standards : ISO 7886-1, ISO8537-2016, YY0497-2018.
Test application
Basic application | It can be used to determine the sliding performance of various syringes. |
Technical index
Item | Parameter |
Force range | 0N~100N |
Accuracy | Error fullness value ±1% |
Test speed | 100±5mm/min |
Litre capacity | 0.1mL~100mL. Arbitrary choice |
Test time | 30±1s（Waiting time from the end of tensile test to the beginning of thrust test） |
Size | 400mm(L)×290mm(W)×275mm(H) |
Net weight | 15kg |
Product configuration
Standard configuration | Host, fixture, weight, printing paper, instruction manual |
