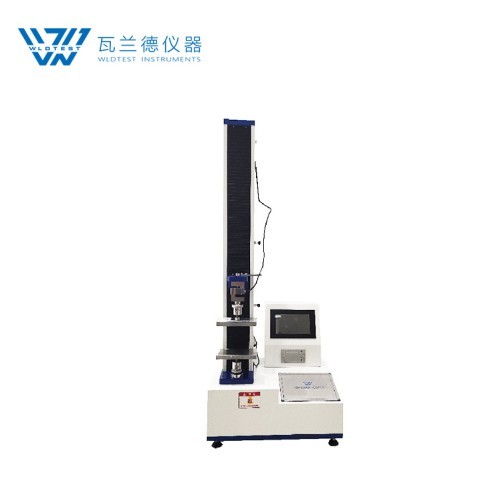

Plastic bottle top pressure strength tester bottle body flat pressure testing equipment
Used to test the top pressure strength, top pressure deformation, bottle body flat pressure, and side pressure strength of plastic bottles or metal cans. The test results can serve as an important basis for controlling and improving product quality.
- WLD
- CHINA
- 1-7DAYS
- 100
- Information
Application
Used to test the top pressure strength, top pressure deformation, bottle body flat pressure, and side pressure strength of plastic bottles or metal cans. The test results can serve as an important basis for controlling and improving product quality.
Professional technology
1. Menu operation interface, easy to use, easy to learn, easy to understand, easy to operate.
2. It is suitable for GB, ISO, ASTM and other standards.
3. It can meet the different test requirements of tensile, peeling, tearing, heat sealing strength and low speed unwinding force.
4. The whole picture of large LCD displays real-time measurement data, change curve and test results.
5. The instrument can complete the test independently, and its own micro printer can print each test result data in time.
6. Equipped with USB interface, professional measurement and control software, through the software control instrument to complete the test.
7. Professional software can display the real-time data and change curve of the test process, and the test data can be saved for comparison.
8. Different test items can be set, printed, viewed, cleared, calibrated and other functional operations.
9. With parameter power down memory, overload protection function, limit protection function, automatic return after test.
| Range | 500N/1000N/2000N/3000N/5000N |
| Accuracy of force | 0.5 class |
| Force Resolution | 0.001N |
| Sample width | 30mm/50mm/100mm |
| Specimen clamping | Manual |
| Test speed | 10~500mm/min |
| Displacement stroke | 600mm |
| Power supply | 220 V/50Hz |
| Dimensions | 450*450*1020mm |
| Net weight | 60kg |
