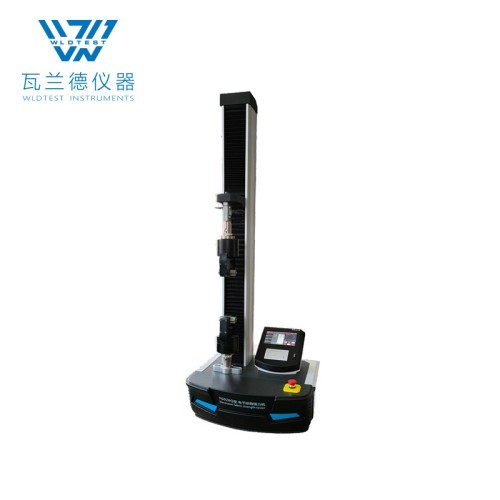

Various materials, nonwoven fabrics, paper, webbing ,the mechanical properties testing machine
Used to test the mechanical properties of various materials such as fabrics, nonwoven fabrics, paper, webbing, and nonwoven fabrics, such as breaking strength, elongation at break, tearing, peeling, bursting, slippage, elastic recovery, and seam slip. It also has various testing functions such as fixed speed, fixed displacement, fixed time, fixed load, and fixed elongation.
- WLD
- CHINA
- 1-7DAYS
- 100
- Information
Various materials, nonwoven fabrics, paper, webbing ,the mechanical properties testing machine
Used to test the mechanical properties of various materials such as fabrics, nonwoven fabrics, paper, webbing, and nonwoven fabrics, such as breaking strength, elongation at break, tearing, peeling, bursting, slippage, elastic recovery, and seam slip. It also has various testing functions such as fixed speed, fixed displacement, fixed time, fixed load, and fixed elongation.
1. The instrument column is made of aluminum alloy profiles, and the surface is treated with oxidation to resist scratching.
2. It is controlled by a Philips 32-bit industrial grade single-chip microcomputer, and an 18 bit A/D converter produced by AD Company of the United States has strong anti-interference performance and extremely fast data processing and transmission.
3. The dynamic sampling frequency reaches more than 1000 times/second, and each data peak can be effectively and correctly captured during the testing process.

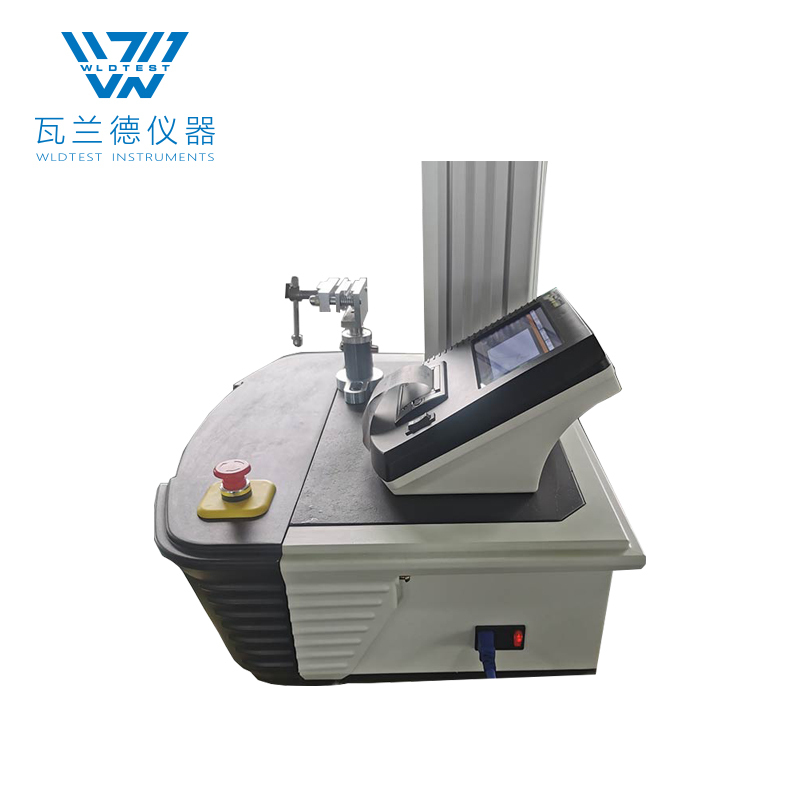

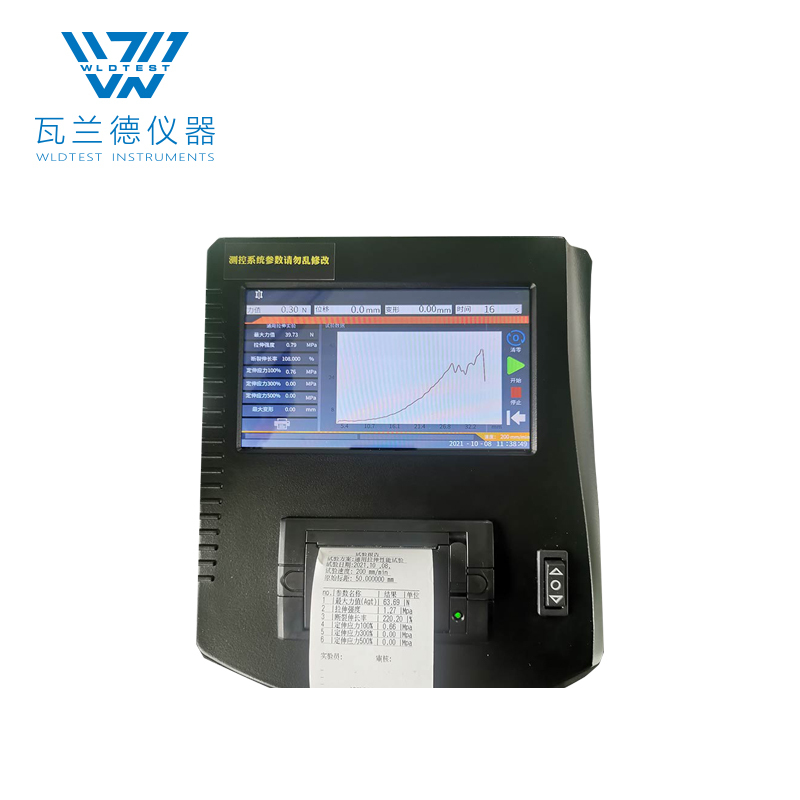

4. LCD touch screen operation, full Chinese menu, built-in printer to directly output reports, easy to operate.
5. Computer online control, dynamic instrument working state, Transmission of test data and real-time display of strength and elongation curves.

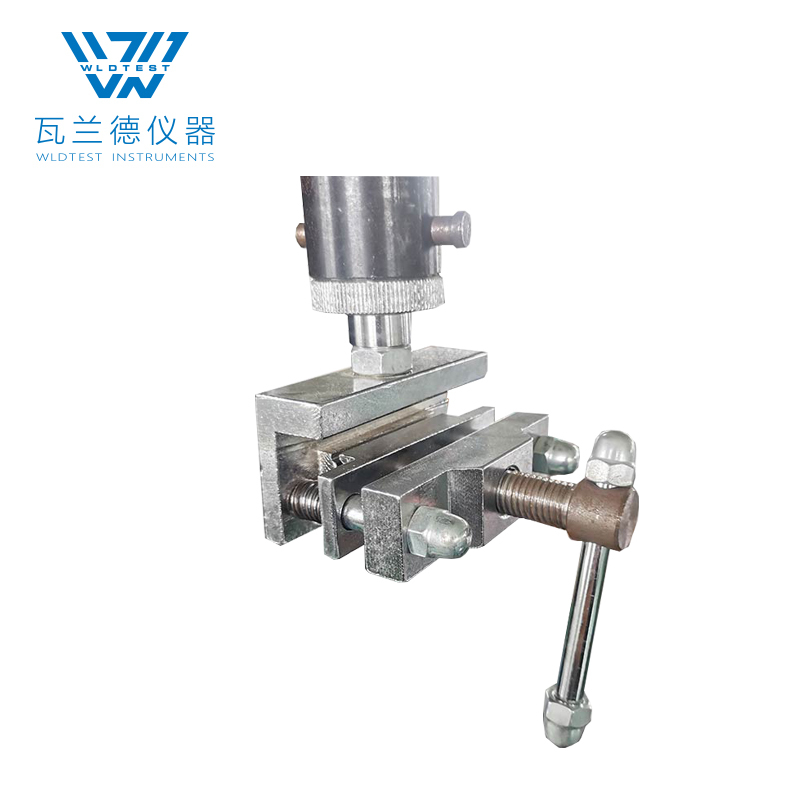

6. Pneumatic clamp, AC servo control system drive, ball screw drive, ultra silent operation.
7. Built-in automatic digital calibration system for force values.
8. Integrated design of testing functions, open data connection interface, and realization of multiple functions for one machine.
9. Force value units: free conversion of CN, N, Kg, lb, etc.
10. It has multiple protections such as overload, overtravel, and overvoltage to ensure the safe operation of the instrument.
Specification
| Range | 30kg/50kg/100kg/250kg/Full range |
| Accuracy | ≤± 0.2% F.S |
| Tensile speed | 1~1000mm/min |
| Recovery speed | 1~1000mm/min |
| Sampling frequency | > 1000 times/s |
| Elongation resolution | ≤ 0.01mm |
| Effective stroke | 600mm/ 650mm |
| Power supply | AC220V ± 10% |
| Power | 500w |
| Weight | 105kg |
