XLW-L Intelligent Electronic Tensile Testing Machine: Applications Across Packaging & Materials Industries

Electronic tensile testing is a fundamental method for evaluating the mechanical properties of materials — particularly flexible packaging films, composites, adhesives, and textiles. The XLW-L Intelligent Electronic Tensile Testing Machine, manufactured by Vieleader, is a single-column universal tensile testing machine designed to deliver precise, repeatable measurements of tensile strength, elongation at break, peel strength, heat seal strength, and tear resistance. Within minutes, it provides reliable data that helps manufacturers ensure product quality, optimize material formulations, and comply with industry standards such as ISO 527 and ASTM D882.

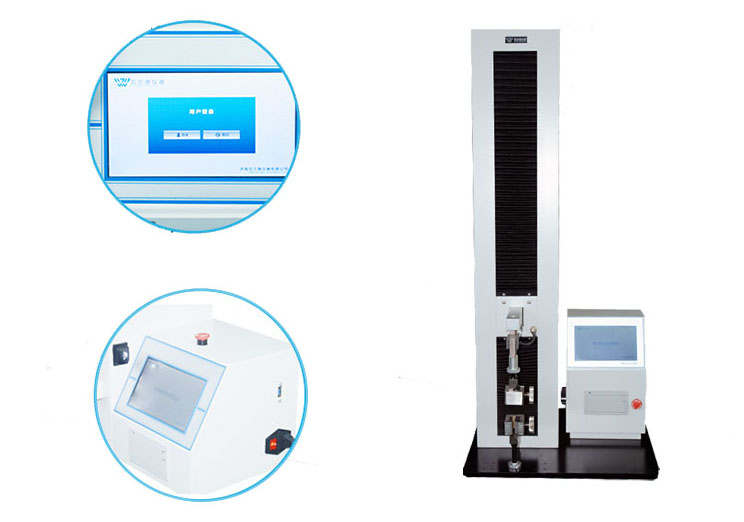

What is the XLW-L Intelligent Electronic Tensile Testing Machine?

The XLW-L Intelligent Electronic Tensile Testing Machine is a computer-controlled or standalone universal tensile testing machine specifically engineered for the mechanical evaluation of plastic films, laminated composites, aluminum foils, paper, adhesives, rubber, and textiles. It applies a controlled tensile force to a specimen held between two grips and records the force-versus-displacement curve until the specimen breaks or separates. The integrated digital control unit features a menu-driven LCD interface, USB data export, and selectable test modes, making it suitable for both routine quality control and advanced R&D applications.

Purpose of Electronic Tensile Testing

• Determine the tensile strength and elongation properties of packaging films and flexible materials.

• Evaluate the peel strength of laminated composites to ensure interlayer adhesion meets quality requirements.

• Measure heat seal strength of pouches and bags to verify seal integrity in food and pharmaceutical packaging.

• Assess tear resistance, compression strength, and puncture resistance of materials under controlled conditions.

• This ASTM D882 tensile tester reliably supports quality compliance workflows.

Key Components of the XLW-L Testing Machine

Every high-quality tensile testing machine relies on key components.

• Load Frame: A precision-machined single-column structure with a ball-screw drive mechanism that ensures smooth, backlash-free crosshead movement. The vertical column houses the drive system that moves the crosshead at programmable speeds.

• Grips and Fixtures: Interchangeable clamps designed for different specimen types. Common options include film grips (for thin plastic films), peel grips (for 90° or 180° peel tests), tensile grips (for rubber and textiles), and compression platens. Proper grip selection is critical to avoid specimen slippage or premature failure at the jaw face.

• Load Cell: A high-precision force transducer mounted on the moving crosshead. The XLW-L typically supports load cells ranging from 50 N to 1000 N, with accuracy of ±0.5% to ±1% of the indicated value. The load cell converts the mechanical force into an electrical signal that is processed by the control system.

• Control Unit and Display: This electronic tensile testing machine features an integrated digital controller with a backlit LCD screen that displays real-time force, displacement, speed, and test curves. The menu-driven interface allows operators to select test modes (tensile, compression, peel, tear, heat seal), set parameters such as test speed and gauge length, and start/stop tests with a single key press.

• USB Data Interface: Test data and curve data can be exported via USB to a flash drive for further analysis, report generation, and traceable record-keeping. This feature is especially valuable for laboratories operating under ISO/IEC 17025:2017 quality management systems.

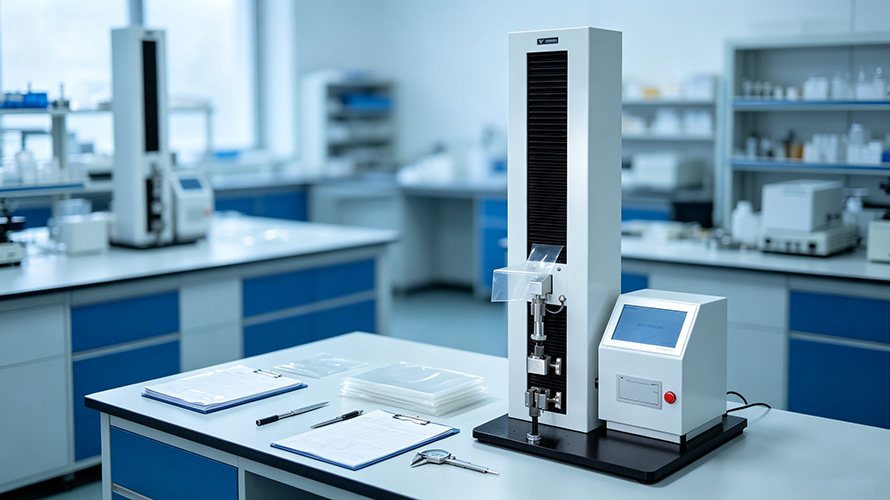

Application Fields of the XLW-L Tensile Tester

The XLW-L is widely deployed across industries where the mechanical integrity of flexible materials directly impacts product quality and safety:

• Food Packaging: Testing of plastic films, aluminum foil laminates, vacuum bags, retort pouches, and shrink wrap. Primary concerns are tensile strength during machine processing, heat seal integrity for shelf-life preservation, and peel strength of multi-layer barrier films.

• Pharmaceutical Packaging: Testing of medicinal aluminum foil, PVC/PVDC blister films, composite membranes for IV bags, and medical-grade paper. Regulatory compliance requires documented mechanical property data per pharmacopeia standards.

• Adhesives & Tapes: Peel adhesion testing of pressure-sensitive tapes, labels, and protective films. Both 90° and 180° peel configurations are supported, allowing manufacturers to verify adhesive formulation consistency.

• Paper & Paperboard: Tensile strength and wet strength testing of kraft paper, corrugated board, tissue, and specialty papers used in packaging and industrial applications.

• Textiles & Nonwovens: Breaking strength, seam slippage, and tear propagation testing for woven and nonwoven fabrics used in industrial, medical, and consumer products.

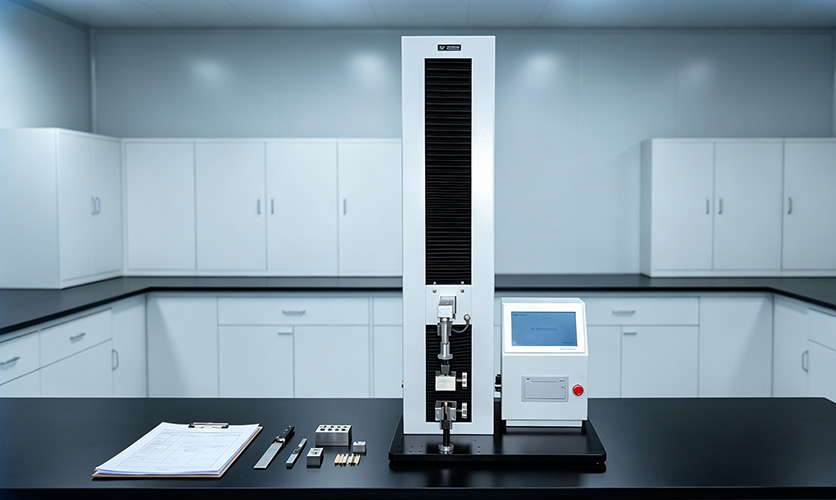

As a versatile universal tensile testing machine and electronic tensile testing machine, the XLW-L serves testing laboratories that handle diverse client requirements, offering traceable, standards-compliant test data across multiple material categories.
