Condom Burst Volume and Pressure Testing Machine: Technical Overview

Introduction to Condom Quality Testing

The quality assurance of latex rubber condoms is a critical process in the manufacturing and regulatory inspection of intimate protective products. Among the various mechanical tests performed on condoms, the burst volume and burst pressure tests are considered fundamental indicators for evaluating product integrity and safety performance. A condom burst tester is specifically designed to measure the maximum volume and pressure that a condom can withstand before rupture, providing essential data for quality control and compliance verification.

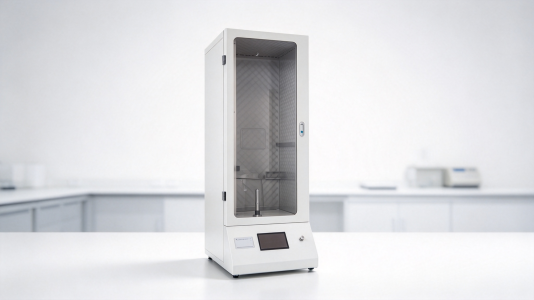

The testing of condoms for burst characteristics is mandated by multiple international standards, including ISO 23409, and ASTM D6324. These standards define the test methods, acceptance criteria, and reporting requirements that manufacturers and inspection agencies must follow. A dedicated condom pressure tester ensures that each product meets the minimum burst pressure requirements specified in these standards, thereby safeguarding end-user safety.

Working Principle of the Condom Burst Tester

The fundamental working principle of a condom burst volume testeris based on the positive pressure inflation method. During the test, the condom specimen is mounted onto a blowing rod and secured between an inflation sleeve and a clamp. The instrument first inflates the inflation sleeve to firmly fix the condom specimen. After a brief software delay, controlled air is pumped into the condom specimen.

As the internal pressure increases, the condom expands until it reaches its burst point. At this moment, the instrument records two critical parameters: the burst volume (expressed in cubic decimeters, rounded to 1 dm3) and the burst pressure (expressed in kilopascals, rounded to 0.01 kPa). The inflation rate can be adjusted via a precision control valve, allowing operators to customize the test conditions according to specific requirements.

Testing Procedure and Methodology

The testing procedure follows a systematic workflow designed to ensure repeatability and accuracy. First, the operator prepares the condom specimen by mounting it on the blowing rod. The inflation sleeve is positioned at the designated height, and the clamp is secured. Upon initiating the test, the instrument automatically inflates the sleeve to grip the specimen, then proceeds with the controlled inflation of the condom.

If leakage is detected during the inflation process, the operator can manually terminate the test, in which case both the burst volume and pressure are recorded as zero. If no leakage occurs prior to rupture, the instrument automatically measures and records the burst volume and pressure values. This methodology ensures consistent and reliable test results across multiple evaluations.

Application Standards and Compliance

The design and manufacturing of the condom burst test equipment are governed by internationally recognized testing standards. The primary standards applicable to this type of testing equipment include:

• ISO 23409: The international standard for rubber condoms and diaphragms, covering burst volume and pressure testing

• ASTM D6324: The American standard test method for burst volume and pressure of condoms

Compliance with these standards ensures that test results are internationally comparable and accepted by regulatory bodies worldwide. Manufacturers exporting condoms to different markets must ensure their products pass the burst testing requirements specified in the standards relevant to each target market.

Automated Testing System

The professional control software provides real-time monitoring and recording of burst flow, volume, and pressure data. Test results are automatically compiled and can be printed directly via an integrated micro printer.

The condom burst volume and pressure testing machine plays an indispensable role in ensuring the quality and safety of latex rubber condoms. By adhering to established international testing standards and employing precise measurement technology, this instrument provides manufacturers, inspection agencies, and quality control laboratories with reliable data for product evaluation. As global standards continue to evolve, the continued refinement of condom burst test equipment will remain essential for maintaining the highest levels of product safety and consumer protection in the intimate protective products industry.
